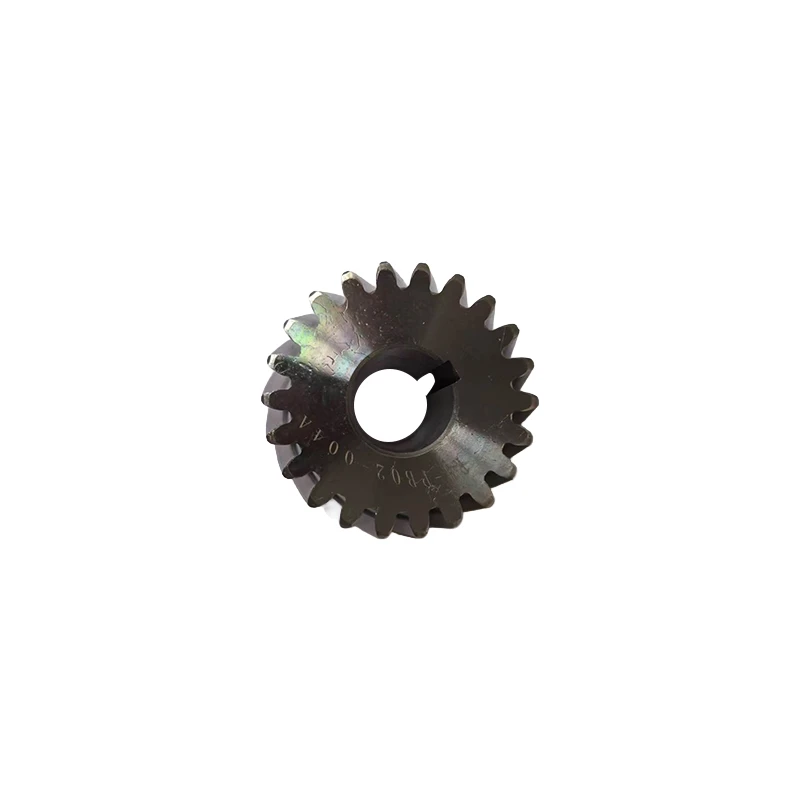

Reverse Driven Gear

This Reverse Driven Gear is the driven part in your reverse system. It meshes with the reverse drive gear or reverse idler gear to change the output shaft direction, allowing your machine to move backward. Yancheng Botu Transmission Machinery manufactures this gear from 20CrMnTi steel. We carburize and quench it, then finish it with precision shaving or grinding. The tooth shape reaches DIN 7–8 grade accuracy, giving you smooth reverse engagement and controlled noise. A reliableReverse Driven Gear makes backing up feel natural and easy.

The carburized layer is 0.8–1.2mm deep, with a surface hardness of HRC58–62. This gives the gear high wear resistance and long service life. Reverse gears are not used frequently, but when engaged, they take heavy shock loads. We optimize the material and tooth shape to handle these shocks and reduce unusual reverse noises. ThisReverse Driven Gear is built for the unique demands of reverse operation.

With 8 years of experience making transmission parts, we know that reverse gears face rare but intense loads. That's why we optimize tooth root radius and case depth to prevent broken teeth. Orders start at 50 pieces. We support CAD drawings or sample copies, with a custom sample lead time of about 60 days. We offer a 1-year warranty and fast after-sales service to repair or replace any quality problem for free.
