Power Take-Off PTO Shaft
Shaft Diameter: Φ20–Φ80 mm
Length: 100–600 mm
Material: 40Cr, 42CrMo
Heat Treatment: Quenching & Tempering + High-Frequency Hardening (HRC50–55)
Billet Output Shaft
Shaft Diameter: Φ25–Φ85 mm
Length: 180–550 mm
Material: 42CrMo, 40Cr
Heat Treatment: Quenching & Tempering + High-Frequency Hardening
Coaxiality: ≤0.02 mm

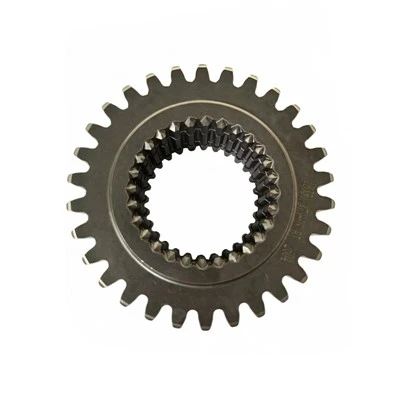

Reverse Idler Shaft
Shaft Diameter: Φ15–Φ55 mm
Length: 60–280 mm
Material: 40Cr, 42CrMo
Heat Treatment: Quenching & Tempering + High-Frequency Hardening
Radial Run-Out: ≤0.015 mm
Shaft Mounted Clutch
Shaft Diameter: Φ25–Φ80 mm
Length: 120–450 mm
Material: 20CrMnTi
Heat Treatment: Carburizing and Quenching (HRC 58–62)
Machining Accuracy: IT6 Grade
Planetary Gear Shaft
Shaft Diameter: Φ10–Φ40 mm
Length: 30–120 mm
Material: 20CrMnTi
Heat Treatment: Carburizing and Quenching (HRC 58–62)
Roundness: ≤0.005 mm
Alloy Steel Billet Output Shaft
Product Name: Alloy Steel Billet Output Shaft
Diameter: Φ25–Φ85 mm
Length: 180–550 mm
Material: 42CrMo / 40Cr
Heat Treatment: Quenching and tempering plus high-frequency...
Precision Ground Clutch Input Shaft
Product Name: Precision Ground Clutch Input Shaft
Diameter: Φ25–Φ80 mm
Length: 150–500 mm
Material: 20CrMnTi
Heat Treatment: Carburizing and quenching
Auxiliary Clutch Shaft
Product Name: Auxiliary Clutch Shaft
Diameter: Φ20–Φ65 mm
Length: 100–400 mm
Material: 20CrMnTi
Heat Treatment: Carburizing and quenching
Right Final Drive Axle Shaft
Product Name: Right Final Drive Axle Shaft
Diameter: Φ30–Φ90 mm
Length: 300–900 mm
Material: 42CrMo / 40Cr
Heat Treatment: Quenching and tempering plus high-frequency hardening
Left Final Drive Axle Shaft
Product Name: Left Final Drive Axle Shaft
Diameter: Φ30–Φ90 mm
Length: 300–900 mm
Material: 42CrMo / 40Cr
Heat Treatment: Quenching and tempering plus high-frequency hardening
Auxiliary Gearbox Drive Shaft
Product Name: Auxiliary Gearbox Drive Shaft
Diameter: Φ25–Φ80 mm
Length: 150–500 mm
Material: 20CrMnTi
Heat Treatment: Carburizing and quenching
Connecting Shaft
Product Name: Connecting Shaft
Diameter: Φ25–Φ75 mm
Length: 100–450 mm
Material: 40Cr / 42CrMo
Heat Treatment: Quenching and tempering plus induction hardening

First 12 3 4 5 Last

Product Overview

Power transmission shafts are critical mechanical components designed to transfer rotational torque and high power between driving and driven units. This product line covers specialized configurations—including PTO output shafts, splined drive shafts, drive gear shafts, clutch shafts, planetary gear shafts, and reverse idler shafts—engineered for severe-duty operating environments.

Primary Function: Transmit high torsional load, radial stress, and axial thrust under continuous cyclic shock.

Power Transmission Mechanism: Rigid or slip-fit mechanical coupling via involute/straight splines, keyways, gear meshes, and precision bearing journals.

Target Equipment: Agricultural tractors, industrial gear reducers, heavy construction machinery, and commercial vehicle drivetrains.

Buyer Profile: Equipment OEMs, mechanical transmission assemblers, and industrial component distributors.

Shaft Types & Engineering Configurations

PTO Output Shafts

Heavy-duty splined shafts manufactured for agricultural tractors and implements, built to handle peak PTO horsepower and continuous torsional shock.

Splined Drive Shafts

Feature precise internal or external involute/straight-sided splines designed for high-torque slip-fit or locked connections with minimal backlash.

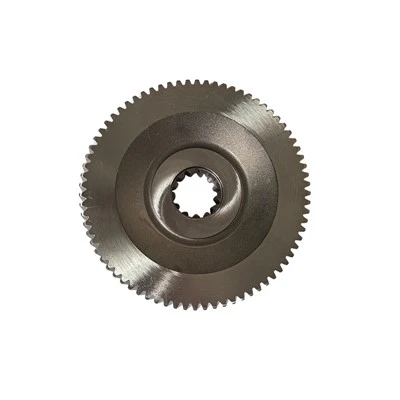

Drive Gear Shafts

Integrated shaft-and-gear configurations that combine high-strength torque transmission with accurate gear reduction or redirection.

Clutch Drive Shafts

Precision-ground cylindrical and splined shafts engineered to withstand frequent axial engagement cycles and high frictional wear.

Planetary Gear Shafts

High-rigidity sun gear shafts and carrier shafts designed for concentrated load distribution in planetary gearboxes.

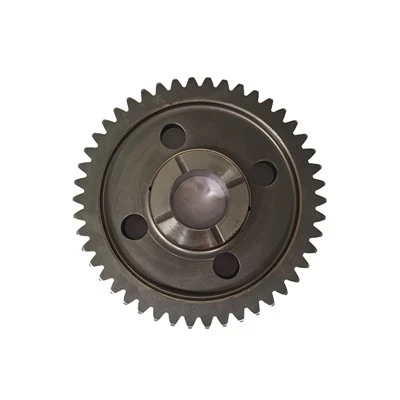

Reverse Idler Shafts

Stationary or rotating support shafts ground to strict geometrical tolerances to accommodate needle bearings and idler gear assemblies.

Materials & Technical Specifications

Raw materials are sourced from traceable steel mills and selected according to core strength, fatigue resistance, and surface wear requirements.

Specification Category	Standard Options & Engineering Parameters
Material Grades	Carbon & Alloy Steel: AISI 1045, 4140, 4340, 8620, 20CrMnTi Stainless Steel: SUS 304, SUS 420, 17-4PH
Dimensional Range	Diameter: Ø20 mm – Ø300 mm Length: Up to 2,500 mm
Spline Standards	Involute Splines (DIN 5480, SAE, ISO 4156) Straight-Sided Splines (DIN 5461, DIN 5462, ANSI B92.1)
Mechanical Properties	Tensile Strength: Up to 1,200 MPa (dependent on material & heat treatment) Case Hardness: HRC 58–62 (effective case depth: 0.8 mm – 2.5 mm) Core Hardness: HRC 30–45
Standard Tolerances	Diameter Tolerance: ISO f7, h6, g6 Concentricity / Runout: ≤0.015 mm Surface Roughness: Ra 0.4 μm – 0.8 μm (journal and seal areas)

In-House Machining & Customization Capabilities

Production utilizes dedicated CNC manufacturing cells to maintain structural integrity, dimensional repeatability, and strict surface finish.

CNC Turning & Milling: Multi-axis turning centers and mill-turn machines configured for step shafts, keyways, oil grooves, and cross-holes in a single clamping setup.

Spline Machining: Dedicated hobbing, shaping, and CNC spline rolling processes to maintain accurate pitch diameters and tooth contact patterns.

Precision Grinding: Cylindrical grinding and centerless grinding to achieve final bearing seat tolerances and mirror-finish seal journals.

Heat Treatment: Controlled-atmosphere furnaces providing induction hardening, carburizing (case hardening), through-hardening, and normalizing to eliminate distortion and guarantee metallurgical consistency.

Typical Applications

Industrial Gearboxes

Helical, bevel, and planetary gear reducer input and output shafts.

Agricultural Machinery

Tractor power take-off (PTO) drivelines, combine harvester transmission shafts, and implement gearboxes.

Automotive & Commercial Vehicles

Transfer case shafts, transmission countershafts, and axle drive components.

Construction Equipment

Excavator slewing drives, wheel loader transmission gear shafts, and heavy-duty winch assemblies.

Quality Control & Inspection

Manufacturing processes adhere to strict shop-floor verification checkpoints. Inspection equipment and methods include:

Form & Geometry Inspection: CMM (Coordinate Measuring Machine) and optical form testers for overall dimensional verification and geometric dimensioning and tolerancing (GD&T).

Runout & Alignment: Precision dial indicators and optical centers verifying coaxiality, radial runout, and straightness across the entire shaft length.

Metallurgical Verification: Metallurgical microscopes, portable and benchtop hardness testers (Rockwell/Vickers) checking case depth and core hardness profiles.

Surface Integrity: Surface roughness profilometers and magnetic particle inspection (MPI) for non-destructive detection of surface or subsurface micro-cracks.

Frequently Asked Questions

Q: What file formats are required for an accurate shaft quotation?

A: 2D production drawings (PDF) with complete GD&T tolerances, material specifications, and heat treatment hardness requirements, accompanied by a 3D CAD model (STEP/IGES) for tool path programming.

Q: Can you manufacture shafts with custom splines that do not follow standard DIN or SAE specs?

A: Yes. Custom involute, stub, and flat root splines are machined using specialized hobbing cutters or form tools built to customer-supplied tooth data tables.

Q: What heat treatment methods do you recommend for high-shock torque applications?

A: Carburizing (case hardening) using alloy steels such as 8620 or 20CrMnTi is recommended. This produces a wear-resistant outer surface (HRC 58–62) while maintaining a tough, ductile core to resist impact fracture.

Q: How do you control distortion during the heat treatment of long shafts?

A: Long or slender shafts (e.g., shafts exceeding 1,000 mm) are processed using vertical drop-quench furnaces, specialized fixture quenching, and post-heat-treatment straightening presses followed by finish grinding.

Q: What is your standard lead time for prototype samples versus volume production?

A: Prototype samples typically require 3 to 4 weeks depending on raw material availability and tooling. Volume production schedules range from 6 to 8 weeks based on release quantities and raw material delivery cycles.

Q: What documentation is provided with shipment?

A: Standard documentation packages include Material Test Reports (MTRs / 3.1 certificates), dimensional inspection reports, and heat treatment certification reports. PPAP Level 3 documentation packages are available upon request.

Request a Quote / Submit RFQ

Ready to discuss your custom shaft project? Send your technical files directly to our engineering team for a fast review.
Required RFQ Details: 2D drawing (PDF), Estimated Annual Usage (EAU), target delivery schedule, and specific quality or packaging requirements.
Direct RFQ Contact: 15261979878@163.com
